Specifications
| Model | AB803 |
| Woofer Speaker Size | 8" |
| Max Output Power | 450W |
| RMS Output Power | 150W |
| Built-in Amplifier Type | Class AB |
| Frequency Response | 20Hz-150Hz |
| Impedance | 2Ω |
| S/N Ratio | 91dB |
| Input Sensitivity(Distortion level 1%) | RCA input 110mV, Speaker input 0.5V |
| Working Voltage | 14.4V(10-16V) |
| Phase Switch | 0°/180° |
| Auto Turn ON/OFF | High level input only |
| Fuse | 25A |
| Radiator Speaker Size | 192x60mm x2 |
| Woofer Cone Material | Aluminum |
| Woofer Magnet Material | Ferrite |
| Enclosure Material | Cast Aluminum Sealed Enclosure |
| Product Dimensions | 355x265x75mm |
| Net Weight | 5.6kg |

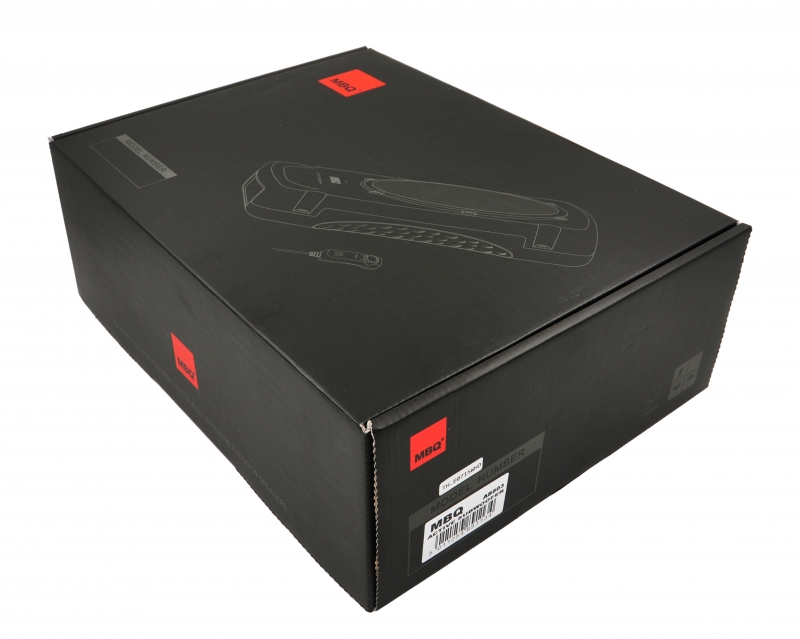

Packaging
